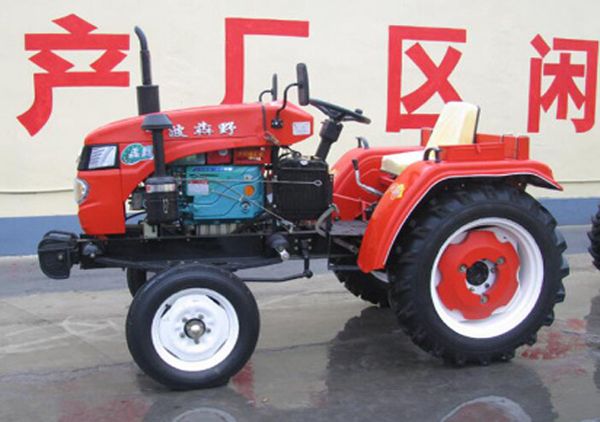

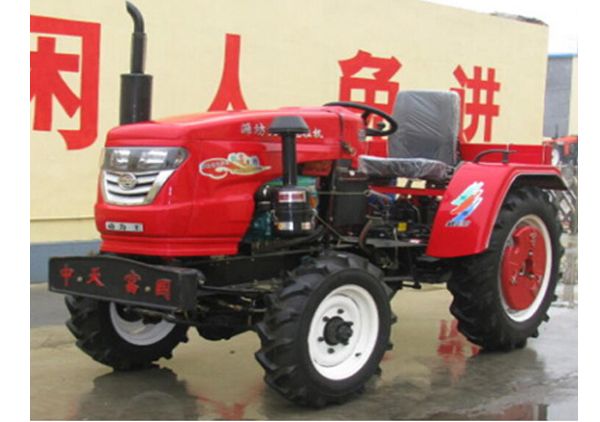

天富单缸两驱/四驱系列拖拉机
性能好，使用维修方便的特点。
This series tractor is designed basing in the normal type and making stronger design.Also equipped with PTO under the international standard.It is a new generation tractor and has the characteritics of large power,low fuel consumption,more shift gears,good matched performance and convenient operation and maintenance.
Model | TF-200 | TF-240 | TF-260 | TF-280 | TF-244 | TF-264 | TF-284 | |||||
Type | 4*2 | 4*4 | 4*4 | 4*4 | ||||||||
Dimensions of Tractor | Dimension(L.W.H)mm | 2700*1170*1320 | 3050*1180*1920 | |||||||||
Tread | Front mm | 900.1000.1100.1200ajustable | 960.1000.1100.1200ajustable | |||||||||
Rear mm | 960.1000.1100.1200.1300ajustable | |||||||||||
Wheel base mm | 1400 | 1510 | ||||||||||
Min.Ground Clearance mm | 350 | 295(306) | ||||||||||
Dry Mass Kg | 950-1010 | 1312-1338 | ||||||||||
Engine | Model | 1115ED | 138ED | 28ED | 30ED | 138ED | 28ED | 33ED | ||||
Type | Single cylinder/direct injection/whate cooled/hrizontal/4 stoke | |||||||||||
Number of cylinder | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
Rated Power Kw（hp) | 14.9 （20） | 17.8（24） | 19.3（26） | 20.8（28） | 17.8（24） | 19.3（26） | 20.8（28） | |||||
Type size | 9.5-24/550-16 | 9.5-24/650-16 | ||||||||||
Clutch | Single chip,dry fricti本系列拖拉机是在普通型拖拉机的基础上经加强设计，并按照国际标准配备后动力输出的新一代四轮拖拉机。具有功率大，油耗低，作业档次多，配套on and single stage clutch | |||||||||||
Gear box | 6+1 | 8+2 | ||||||||||
PTO r/min(Optional) | Postposition independ type6 spligle 540 | Postposition independ type6 spligle 540/720 | ||||||||||
